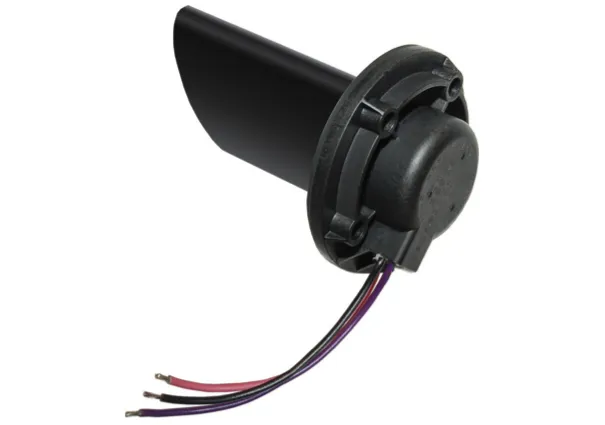

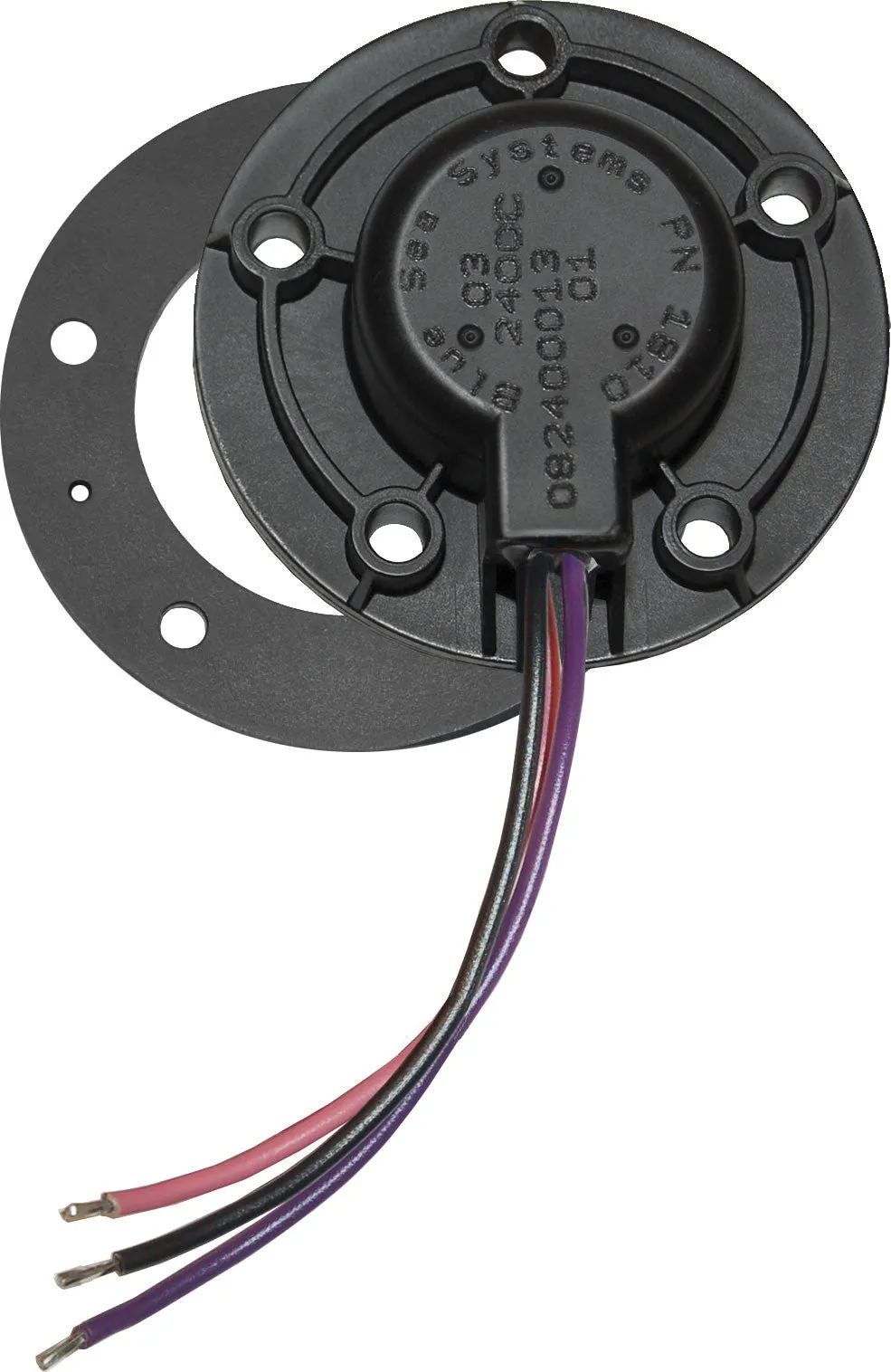

Diesel/Water/Waste Sensor for VSM 422 Monitor

Key Features

• Accurate - used with the Vessel Systems Monitor VSM 422 PN 1800—can be precisely calibrated for each tank*
• Reliable - SSI Technologies, Inc. Fluid-Trac® is non-contacting eliminating any mechanical moving parts that can wear and cause intermittent or complete signal loss
• Digital filtering - Eliminates errors due to liquids sloshing in mobile tanks

• Senders are calibrated to the VSM 422 and will not function with other monitors
• Senders must be mounted 4" or greater distance from a tank side or baffle
• Tank floor must not be sloped
• Tanks must not be deeper than 32"
• Sender must be mounted perpendicular to the surface of the liquid
• The sender negative connection should be connected as directly as possible to the main negative bus.

Specification

• Operating Current : 40mA @ 12V, 45mA @ 24V
• Supply Voltage : 10-32V DC
• Weight : 0.25lb ( 0.11kg)
