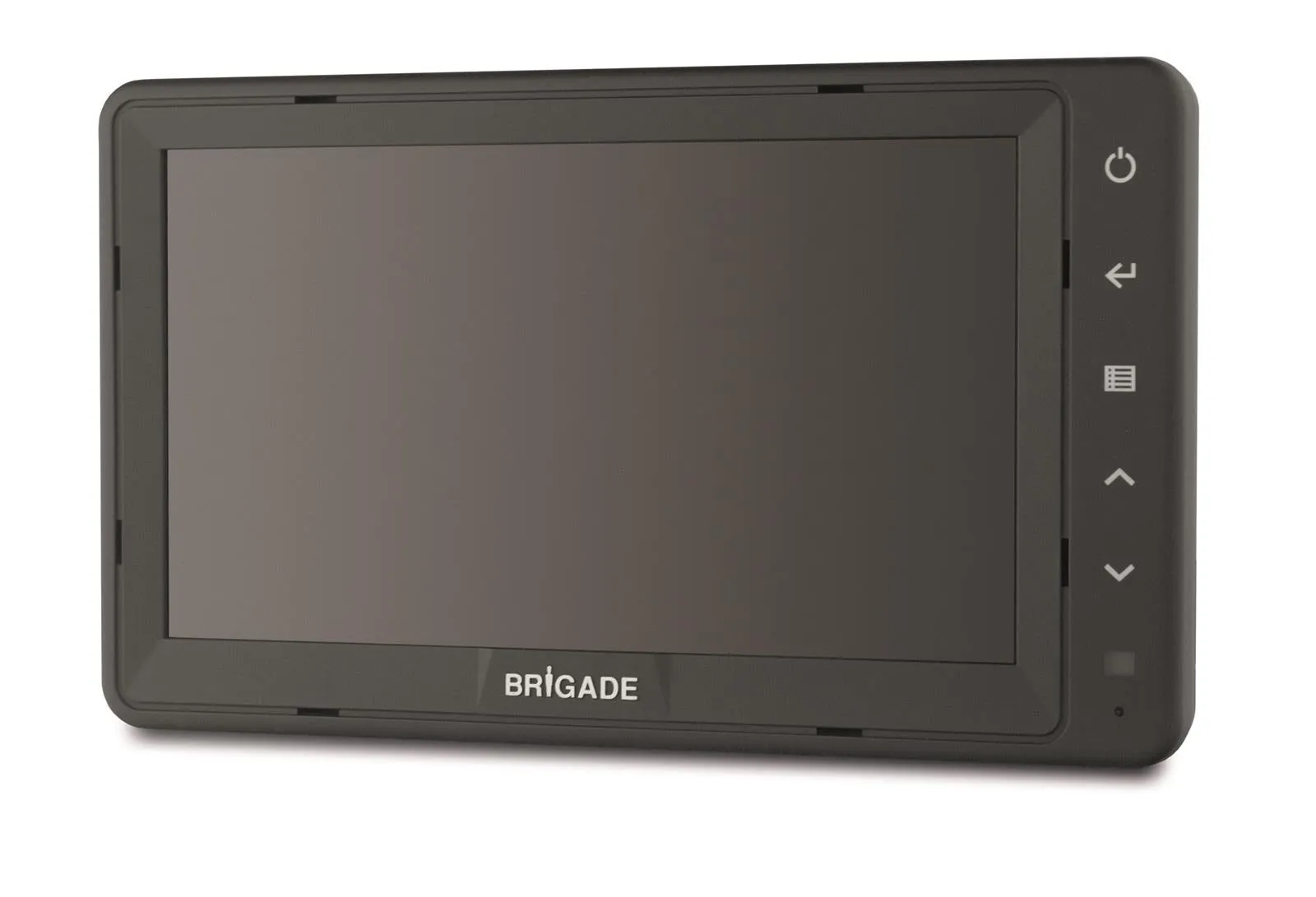

The Brigade Electronics VBV-770M is a versatile mid-range backup monitor designed for various applications, making it an excellent choice for enhancing safety in Class 8 trucks. This monitor features a 5-pin input for connection to the VBV-710C shutter camera and is built to provide reliable performance.

Features:

• 12-24Vdc power supply
• 3 camera inputs
• Size: 7.7" x 4.6" x 1"
• 2-year warranty
• 3 auto-triggers for automated functionality
• Mirror/Normal switching from the menu
• Button lock anti-tamper feature
• On-screen distance markers for enhanced visibility
• Audio capability
• Sun shield for improved viewing in bright conditions
• Auto-dimmer function
• Multi-lingual menus
• Auto-switching between PAL and NTSC

Picture Quality:

• LED backlighting with a lifespan of 20,000 hours
• Anti-glare screen for clear visibility
• Resolution: 800 x 480
• Contrast ratio: 500:1
• Brightness: 400 cd/m²
• Viewing angles: Side 70° x Top 50° x Bottom 70°

Durability & Standards:

• Mechanical vibration: 4G
• Mechanical shock: 100G
• Operating temperature: -30 to 70°C / -4 to 158°F
• CE marked, EMC approved: E, FCC approved, HALT tested

Power:

• Power consumption: 18 watts
• Current: 1.5 amps

Manufacturer Part Number (PN):

• VBV-770M
