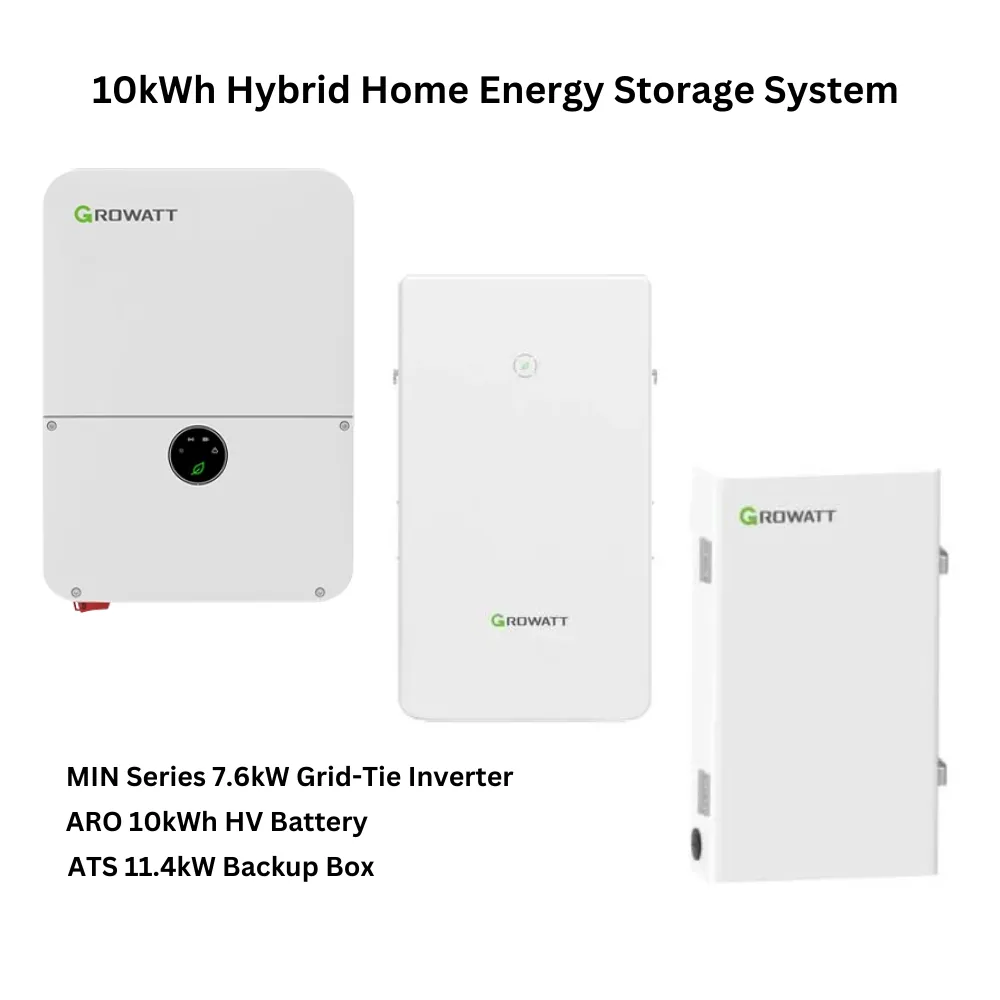

Introducing the Growatt Hybrid Home Energy Storage System

An all-in-one solution for seamless energy storage and management. This system is designed for both off-grid and grid-tie applications, ensuring that your home remains powered and efficient, regardless of grid status. The kit includes the Growatt MIN 7600TL-XH-US 7.6kW hybrid inverter, a high-capacity 10kWh ARO high voltage battery, and the ATS-XH-US automatic transfer switch, providing a comprehensive energy storage solution.

Ideal for households with daily electricity consumption ranging from 25 to 50 kWh, this system is particularly beneficial for homes with high-power loads such as electric vehicles and swimming pools. It maximizes self-consumption of solar energy, significantly reduces electricity bills, and ensures energy independence during power outages.

System Key Features:

• Energy Independence: Generate and store your own renewable energy to reduce reliance on the grid.
• Self-Consumption Optimization: Store excess solar energy during the day and use it during peak evening hours to lower electricity bills.
• Off-Grid Capability: Automatically switch to off-grid mode during power outages, ensuring continuous power supply.
• Flexible Energy Management: Supports multiple energy management modes including self-consumption, zero export, TOU, and off-grid.
• High Efficiency: The Growatt MIN 7600TL-XH-US inverter boasts up to 98.4% efficiency with 3 MPP trackers.
• Easy Monitoring: Built-in 4G/WiFi communication for real-time monitoring via mobile app or web portal.

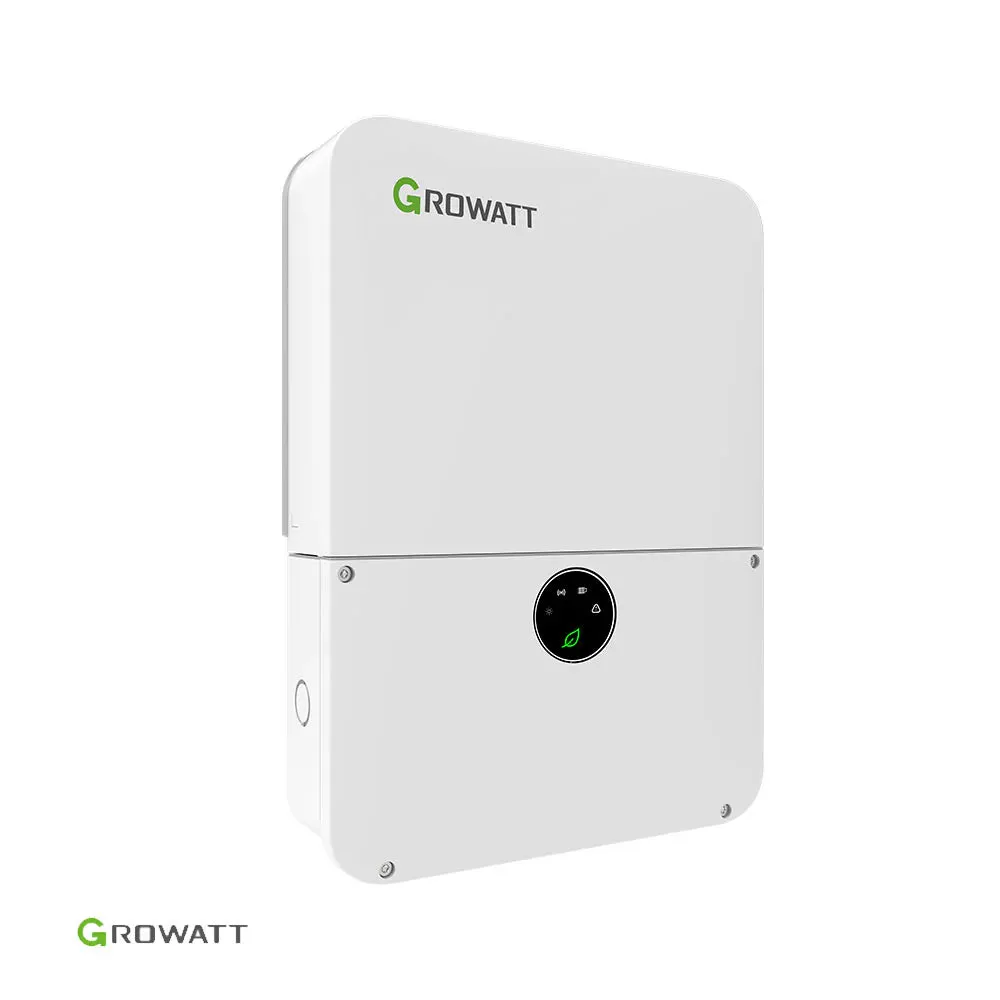

Growatt MIN 7600TL-XH-US 7.6kW Hybrid Inverter:

• Battery ready for DC and AC coupled systems
• Supports backup power and dark start operations
• Rapid shutdown solution and AFCI integrated
• Compliant with UL1741SA, CA Rule21, and HECO standards
• 10-year warranty for peace of mind

Growatt APX 10kWh High Voltage Battery:

• 10kWh Capacity: Ample storage for diverse energy demands.
• Safe & Stable: Cobalt-free LiFePO4 technology.
• Expandable: Easy scalability for growing needs.
• 5kW Continuous Power: With 8kW peak capability.
• Weatherproof: IP66 rated protection.
• Intelligent BMS: Enhances battery efficiency and life.
• Wide Temp Range: Functional from -10°C to 50°C.
• 10-Year Warranty: Assured quality and support.
• Versatile Integration: Fits on-grid and off-grid setups.

Growatt ATS-XH-US 11.4kW Backup Box:

• Partial home load backup capability
• Built-in split-phase transformer for 120V/240V output
• Seamless operation during power outages

With the Growatt Hybrid Home Energy Storage System, achieve energy independence, reduce electricity bills, and ensure a reliable power supply for your home. Experience the efficiency and reliability of modern solar technology and battery storage in one comprehensive package.
