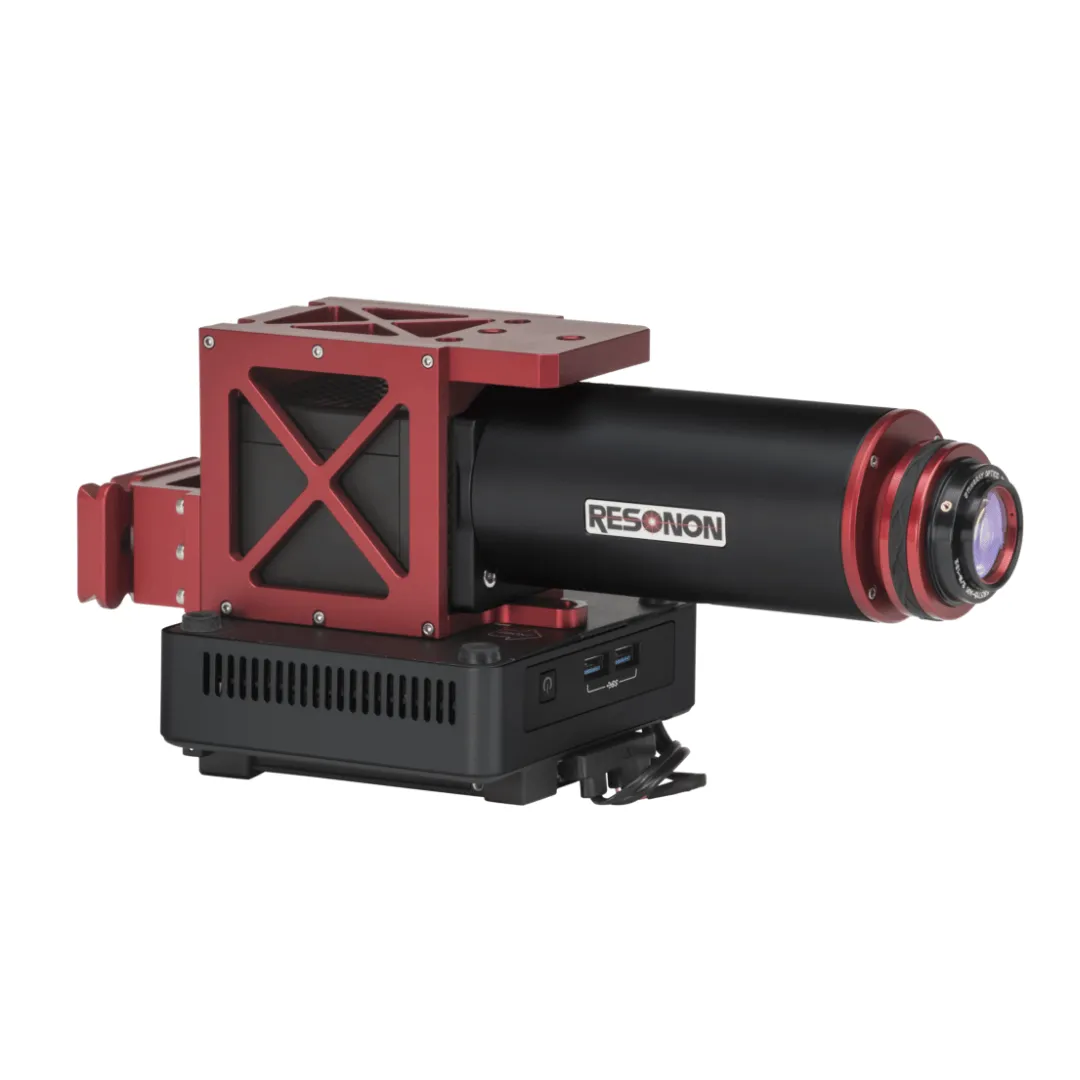

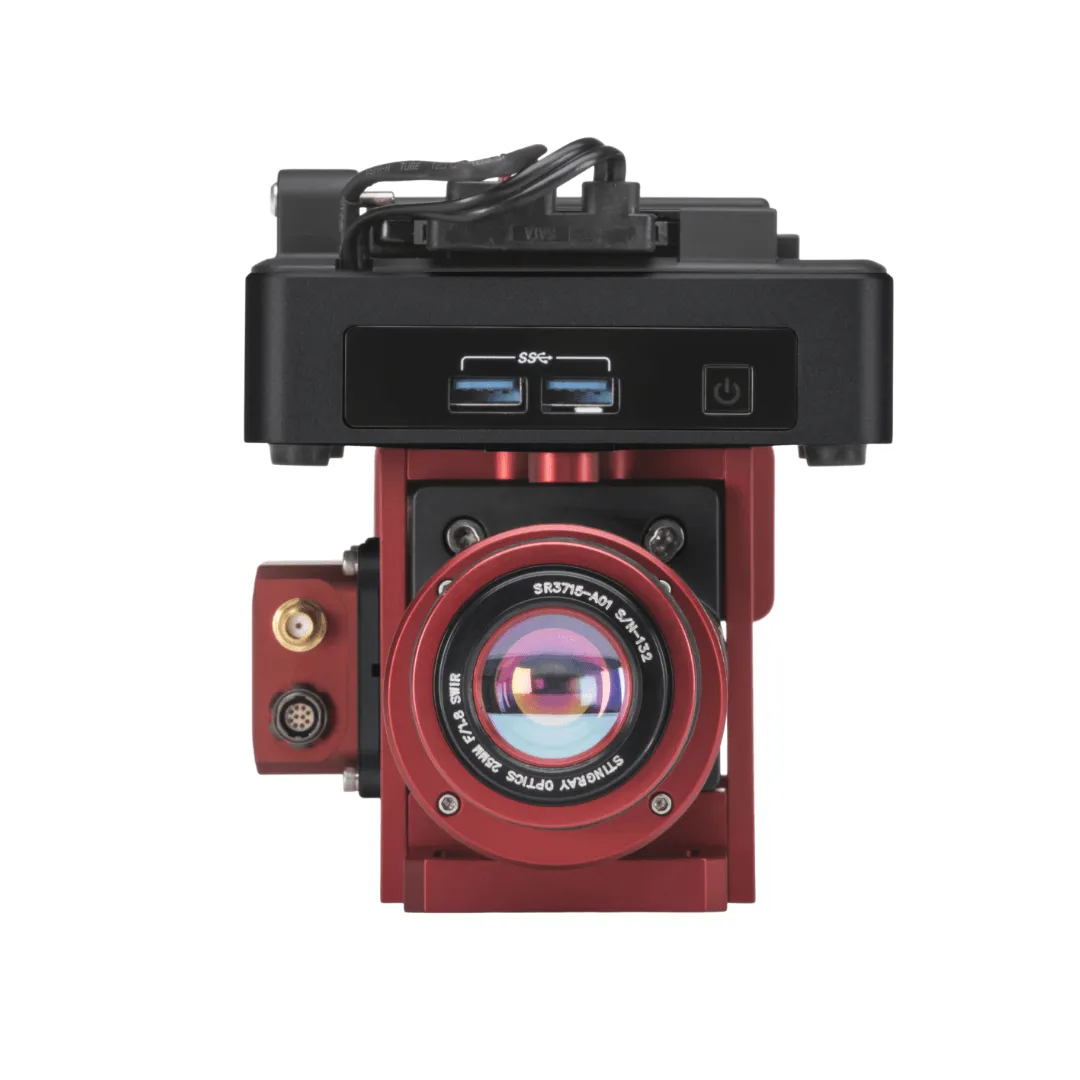

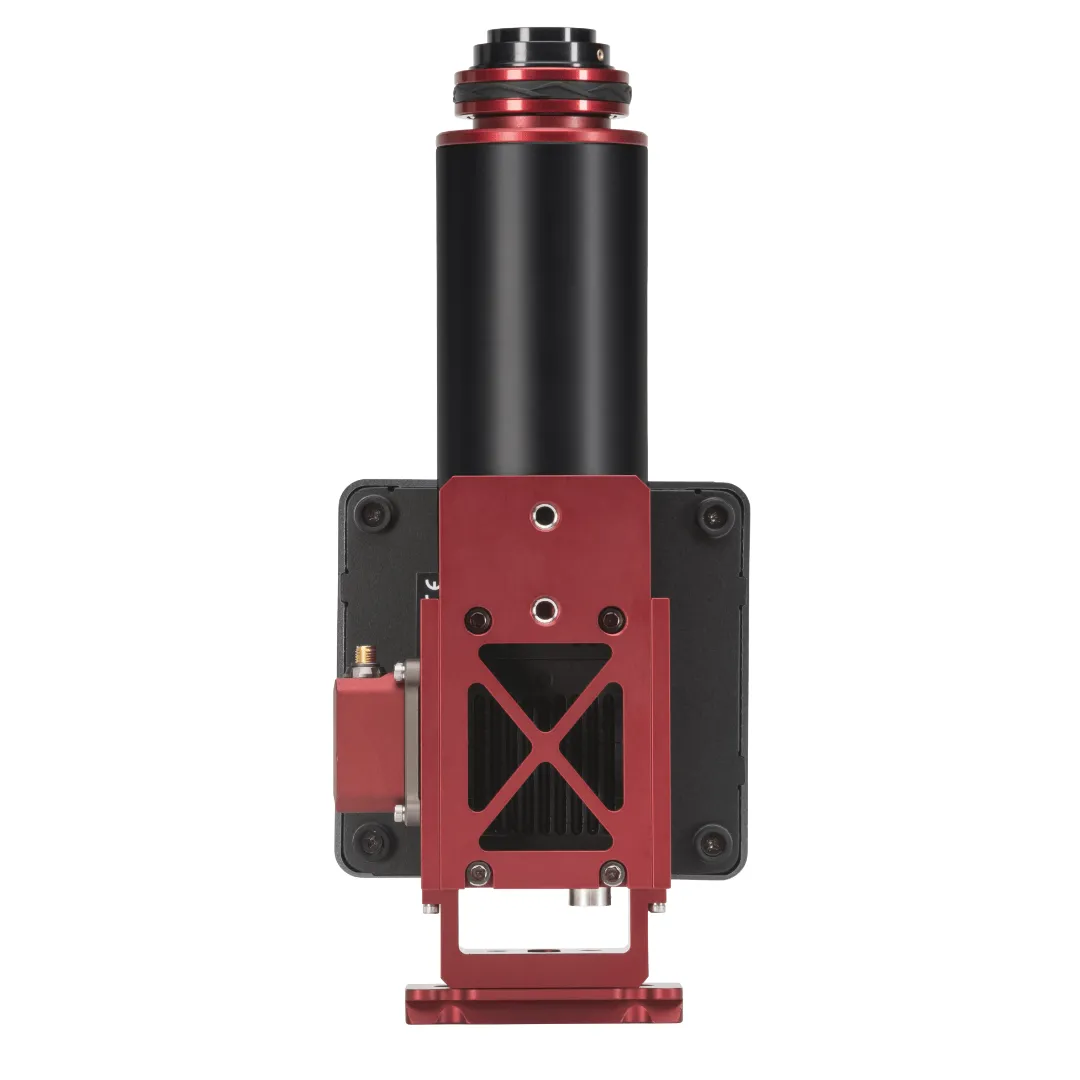

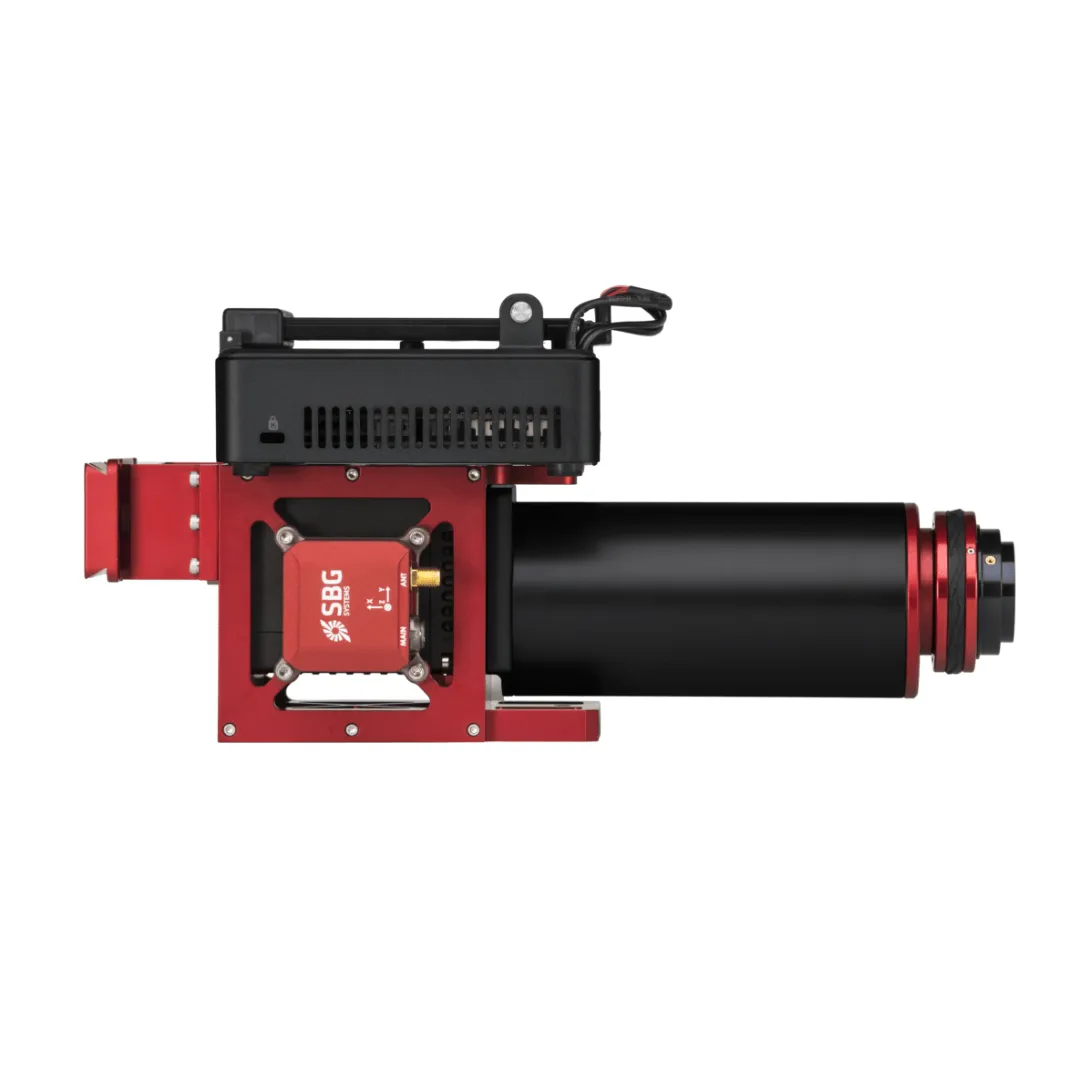

PIKA IR-L Hyperspectral Camera by Resonon
The Pika IR-L is a lightweight and compact hyperspectral camera for the Near-Infrared (NIR) spectral range (925 – 1700 nm). The small size and mass make it well suited for airborne remote sensing applications, where it can provide contrast of outdoor features that are invisible to the naked-eye. The Pika IR-L can be used in our airborne, laboratory, and outdoor hyperspectral systems, as well as standalone or integrated into your system with our programming guidance document.
Features
Spectral Range: 925 – 1700 nm
320 Spatial Pixels Per Line
236 Spectral Channels Per Line
High Speed (364 fps max.)
Objective Lenses for Pika L
Please contact us for additional lense options for the Pika IR-L
| Specifications | |
|---|---|
| Spectral Range (nm) | 925 - 1700 |
| Spectral Channels | 236 |
| Spectral Resolution - FWHM (nm) | 5.9 |
| Spatial Pixels | 320 |
| Max Frame Rate (fps) | 364 |
| f/# | 1.8 |
| Interface | GigE |
| Dimensions (mm) | 210 x 68 x 63 |
| Weight, w/o lens (kg) | 1.01 |
| Certifications | CE, RoHS 3 |
