PN/ VAN-280442*

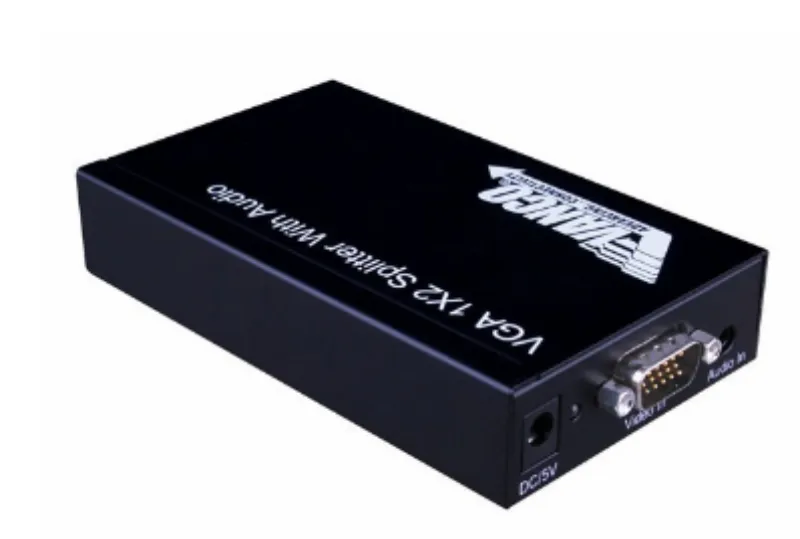

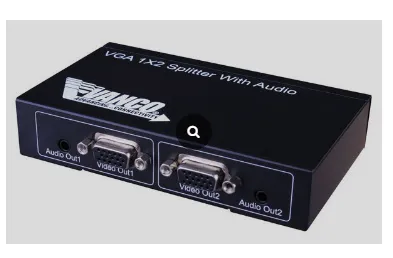

S-VGA 1x2 Splitter with Audio

FEATURES

• Use to Duplicate and Amplify VGA and Audio Signals from a Single Source to Two Monitors or other Display Devices
• Enhances Video Signals for Long Distance Broadcast up to 164 ft (50m)
• Supports VGA- SVGA- XGA- SXGA- UXGA and Multi-Sync Compliant Monitors
• Supports Video Resolutions up to 1920×1200 at 60 Hz
• Supports 500 MHz Video Bandwidth for Each Port
• Supports Two Channel Stereo Audio- Bandwidth: 30 KHz
• (1) Input Connector:   HD-DB15 (15 Pin) Female Jack and 3.5mm Female Jack- (2) Output Connectors: HD-DB15 (15 Pin) Female Jacks and 3.5mm Female Jacks
• Includes 6 ft VGA Male/Female Cable
• Power Supply: 5 V DC- UL Listed
• Dimensions: 4.7” W x .9” H x 2.8″ D
